Name: GZPB370 High Speed Tablet Press Machine 380V Precision Stainless Steel Rotary Tablet Press
Brand: Shanghai Tianfeng Pharmaceutical Equipment Co., Ltd.
SKU: GZPB370
Price: 21,725.00 USD
Availability: InStock

Haus > produits > Drehtablettenpressemaschine >

GZPB370 High Speed Tablet Press Machine 380V Precision Stainless Steel Rotary Tablet Press

380V Rotary Tablet Press

Precision Tablet Press Machine

Stainless Steel Tablet Press

Herkunftsort:

Shanghai, China

Markenname:

Tianfeng

Zertifizierung:

CE ISO

Modellnummer:

GZPB370

Treten Sie mit uns in Verbindung

Fordern Sie ein Zitat

Produktdetails

Modell Nr.:

GZPB370

Stromspannung:

380V

Nr. Stationen:

26 | 32 | 40

Art der Werkzeugausstattung:

D | B | BB

Max. Druck:

100 | 80 | 80 kN

Max. Vordruck:

20 | 20 | 20 kN

Max. Tablettendurchmesser:

Runde Tablette 25 | 18 | 13 mm, speziell geformte Tablette 25 | 19 | 16 mm

Max. Tiefe füllen:

16 mm

Max. Tafeldicke:

6 mm

Höhere und untere Stanzlänge:

133,6 mm

Oberer und unterer Stempeldurchmesser:

25,35 | 19 | 19 mm

Mittlerer Formdurchmesser:

38,1 | 30,16 | 24,01 mm

Mittlere Formhöhe:

23,81 | 22,22 | 22,22 mm

Max. Tablettenausgabe:

135000 | 201000 | 252000 Stück/Stunde

Max. Turmgeschwindigkeit:

11-87 | 11-105 | 11-105 1/min

Hauptmotorleistung:

11 | 7,5 | 7,5 kW

Höhe der Maschine:

1850 mm

Maschinengrundfläche:

1200×950 mm²

Maschinennetzgewicht:

1700 kg

Zahlungs-u. Verschiffen-Ausdrücke

Min Bestellmenge

Preis

Welcome to consult

Verpackung Informationen

Export-Scheibeholzgehäuse

Lieferzeit

30-45 Arbeitstage

Verwandte Produkte

Professional Rotary Pill Press Machine for Pharmaceutical Manufacturing Needs

Erhalten Sie besten Preis

Status Code 403 Server openresty Description The server understood the request Rotary Tablet Press Machine

Erhalten Sie besten Preis

Advanced Rotary Tablet Press Machine for Smooth and Precise Production

Erhalten Sie besten Preis

Openresty Server Smooth Tablet Production with Rotary Tablet Compression Machine

Erhalten Sie besten Preis

Treten Sie mit uns in Verbindung

86-21-57664559

Kontakt jetzt

Produkt-Beschreibung

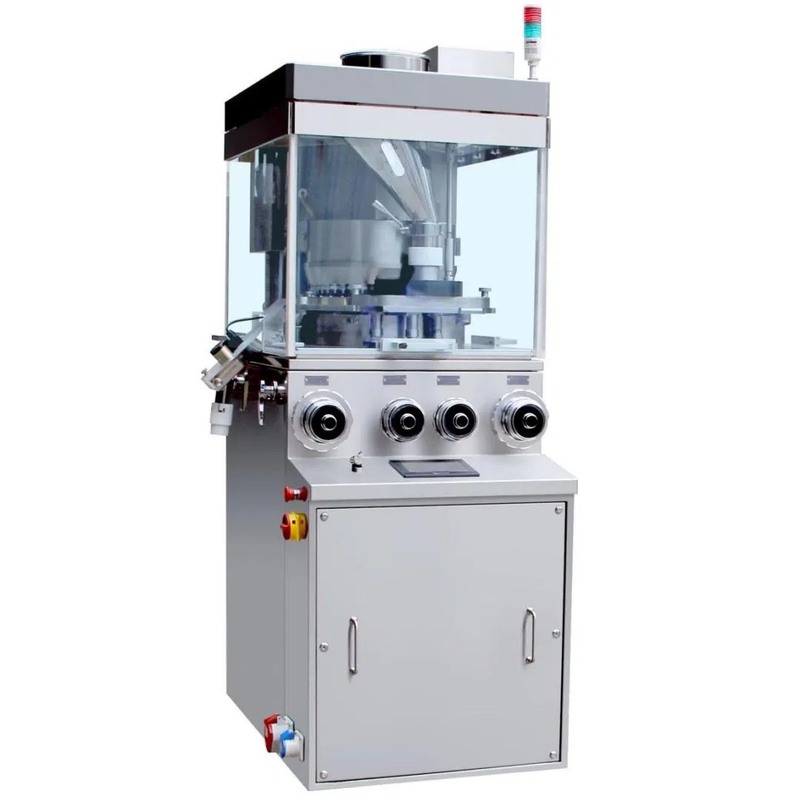

GZPB370 High Speed Tablet Press Machine

Purpose

This single side rotary tablet press machine converts granular materials into round, irregular, or double-side engraved tablets. Ideal for pharmaceutical, chemical, food, and electronic industries.

Features

Stainless steel construction with fully enclosed housing. Rotary turret features hardened surface for wear resistance and complies with GMP standards.
Organic glass windows with stainless steel door frames enhance both aesthetics and structural rigidity.
Frequency inverter for adjustable speed. Motor mounted on base plate prevents vibration during operation.
Intermittent automatic lubrication system for upper/lower guide rails and punches reduces wear.
Hydraulic overload protection automatically stops machine during over-pressure to prevent punch damage.
High-precision pressure sensor with amplifier enables reliable self-checking of tablet compression pressure. Easy-to-use weight control system with batch/individual rejection of substandard tablets.
Customizable impeller options in forced feeder for different material requirements.

Main Technical Parameters

Model	GZPB-26	GZPB-32	GZPB-40
No. of Stations	26	32	40
Type of Tooling	D	B	BB
Max. Pressure (kN)	100	80	80
Max. Pre-pressure (kN)	20	20	20
Max. Tablet Diameter (mm) - Round	25	18	13
Max. Tablet Diameter (mm) - Special shaped	25	19	16
Max. Filling Depth (mm)	16	16	16
Max. Tablet Thickness (mm)	6	6	6
Upper and Lower punch Length (mm)	133.6	133.6	133.6
Upper and Lower punch diameter (mm)	25.35	19	19
Middle Mold Diameter (mm)	38.1	30.16	24.01
Middle Mold Height (mm)	23.81	22.22	22.22
Max. Tablets output (pcs/hour)	135000	201000	252000
Max. Turret Speed (1/min)	11-87	11-105	11-105
Main Motor Power (kW)	11	7.5	7.5
Height of the Machine (mm)	1850	1850	1850
Machine Floor Space (mm²)	1200×950	1200×950	1200×950
Machine Net Weight (kg)	1700
